WebMO Help - Job Options

Configuring Job Options

The Configure Job Options page is where one specifies the details of the calculation to be carried out.

Frequently specified options (Name, Calculation, Theory, Basis) are listed the Job Options tab. Options that are less commonly used, specific to a particular program, or specific to a particular calculation type are specified on the Advanced tab. An Estimated Run Time for the currently selected options is displayed.

One can also view and optionally the input file that is created with the selected options from the Preview tab.

It is also possible to add notes about the job with the Notes tab (WebMO Pro and Enterprise).

When done specifying options, click the forward arrow () on the bottom right to submit the job to the WebMO job queue, where it is run in turn at the first available opportunity.

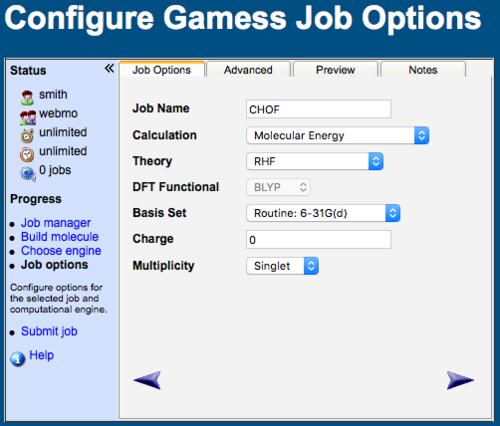

WebMO Configure Job Options Tab

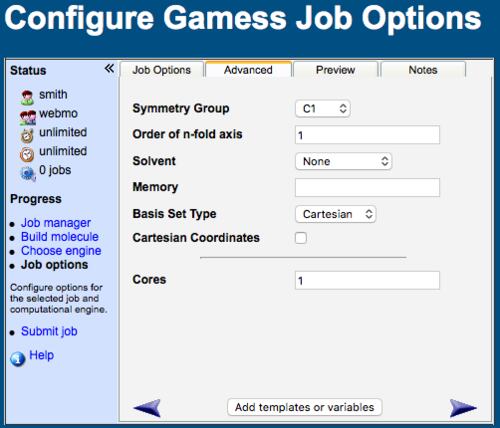

WebMO Advanced Job Options Tab

Common Job Options

Although reasonable defaults are provided for job options, one typically needs to modify the Job Name, Calculation, Theory, and Basis Set.

Job Name: The default is the molecular formula, but you will likely wish to specify a more descriptive title

Calculation: The default is Molecular Energy, but many other calculation types are available

Theory or Method: The default is usually Hartree-Fock, but many other theories (MP2, CCSD, DFT, etc.) are available

Functional: If a DFT method is selected, then a functional (B3LYP, MO5, etc.) must be specified

Basis Set: Minimal, Basic, Routine, and Accurate basis sets are suggested, but many others are listed; the basis set may also be specified with Other

Charge: The default is based on the overall charge of the molecule from the editor, but may be changed here

Multiplicity: The default is based on the number of electrons from the editor, but may be changed here

ONIOM: If layers exist, ONIOM method, charge, and multiplicity may be specified

Estimated Run Time

The Est. Run Time field displays an approximate run time for the molecule with the currently selected options, before the job is submitted.

The estimate is automatically updated as the Calculation, Theory, Functional, Basis Set, Density Fitting, and Cores options are changed. It is therefore useful for comparing the relative cost of different options, e.g., a larger basis set or a more demanding theory, before submitting a calculation.

For engines with calibrated density fitting estimates (NWChem, Orca, and Psi4), the Density Fitting option is automatically selected whenever it is predicted to be faster. This recommendation is not made if job options were carried over from a previous job, and it stops once Density Fitting is changed manually.

The estimate is color coded: green for less than 5 minutes, yellow for less than 40 minutes, and red for 40 minutes or more. Times are displayed as an approximate range, e.g., "<1 minute", "~10-20 minutes", or "~2-3 hours". If the selected combination of calculation, theory, and basis set has not been calibrated, then "Unknown" is displayed.

Hover over the help icon () next to the time estimate to display the calculation size and the estimate in seconds.

Estimated run times are approximate. They are based on empirical scaling with the number of atoms and basis functions on reference hardware. Actual run times vary with the speed of the computer, molecular symmetry, convergence behavior, and system load. The estimate is best used to compare the relative cost of different options rather than as a guaranteed run time.

Advanced Job Options

The advanced tab is individualized for each engine and calculation type. Although the following list is rather comprehensive, only the pertinent options for a selected calculation type are listed on the advanced tab.

Additional Keywords: Specify additional keywords that are not provided by WebMO, e.g., "GEO-OK" allows atoms to be closer the 0.8 Angstroms in Mopac

Basis Set Type: Spherical has less linear dependence, but Cartesian are more easily implemented in the program; omitting a specification uses the program default

Calculate Force Constants: Output force constants following a vibrational frequency calculation

Calculate Raman intensities: Output Raman intensities

Cartesian Coordinates: Specify the molecular geometry using cartesian coordinates instead of internal coordinates

Cores: Specify the number of CPU cores to be used in a calculation on a local or remote server (WebMO Pro and Enterprise); the more cores that are used, the faster the calculation

Density Fitting: Approximate the two-electron integrals using an auxiliary basis set (RI, or RIJCOSX in Orca) to reduce the cost of HF and DFT calculations (selected by default when the Estimated Run Time is shorter with density fitting than without)

Direct SCF: Calculate two-electron integrals on-the-fly rather than storing them on disk to increase speed and save disk space (selected by default for larger molecules)

Disable Symmetry: Turn off program optimization for molecular symmetry; useful when the point group of the molecule changes during the course of the calculation

EOM: Equation of Motion calculation for excited states

Excited State: Run the calculation for an excited states using a program-specific method

Excites State Method: Choose method for calculating the excited state

External Paramaters: Specify location of a file with external parameters

Freeze all core: Exclude core orbitals from post-SCF calculation

Include Connectivity: Include bonding information to assist program in determining internal coordinates

Max Opt Steps: Specify maximum number of steps during geometry optimization

Memory: Specify amount of memory allocated to job

Nodes : PPN : Node Type: Specify the number of compute nodes (typically 1), Processors (cores) Per Node (for example, 4), and compute node type (for example, bigmem) to be requested of the queueing system; this would be equivalent to a PBS line of "#PBS -l nodes=1:ppn=4:bigmem"

Optimization Coordinates: Specify coordinate system to be used for geometry optimization

Optimize Excited States: See Excited State

Output Mode: Choose Terse, Normal, or Verbose output

PCM Dielectric: See Solvent

Precise Optimization: Use tighter convergence criteria; useful for Frequency calculations

Resource List: Specify the resources to be requested of the queuing system (for example, walltime=24:00:00); this would be equivalent to a PBS line of "#PBS -l walltime=24:00:00"

Save Check Point/Restart File: Save a file from which the calculation can be restarted

Second Geometry: Specify the job number for a second geometry, e.g., in a Saddle calculation

Solvation Model: Specify solvent model

Solvent: Specify a solvent and use a program-specific continuous solvent model

Symmetry Group: Specify symmetry of molecule

Symmetry Number: Specify rotational symmetry number for statistical thermodynamic calculations

Use Check Point/Restart File: Specify job number of a calculation to be restarted
